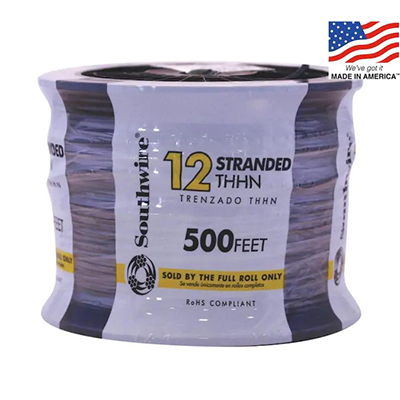

Southwire 500-ft 12-AWG Stranded Black Copper THHN Wire (By-the-Roll)

Item #: 22964158

TEST

$76.05

Sold As: Single Unit

Quantity

Rate & Write a Review

Southwire 500-ft 12-AWG Stranded Black Copper THHN Wire (By-the-Roll)

Overview

Southwire's THHN conductors are primarily used in conduit and cable trays for services, feeders, and branch circuits in commercial or industrial applications.

Southwire's THHN conductors are primarily used in conduit and cable trays for services, feeders, and branch circuits in commercial or industrial applications
Conductor is suitable for use in dry locations at temperatures not to exceed 90Â°C

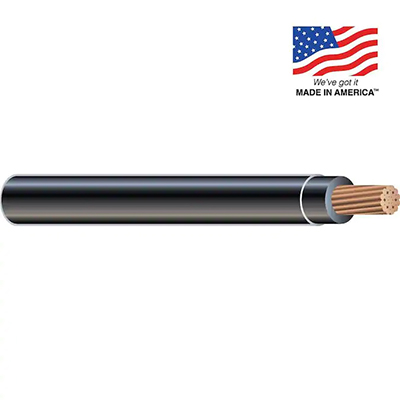

Copper conductors are annealed (soft) copper, compressed strand, insulated with a tough heat and moisture resistant polyvinyl chloride (PVC)
Jacket is abrasion, heat, moisture, gasoline and oil resistant nylon
Voltage for all applications is 600 volts
UL Listed

Product Name	Southwire 500-ft 12-AWG Stranded Black Copper THHN Wire (By-the-Roll)
Lookup #	22964158
Weight	1 lbs
Length	1 in
Width	1 in
Height	1 in
Cube	1 sq ft
Assembled Length	1 in
Assembled Width	1 in
Assembled Height	1 in
Insulation Material	PVC (polyvinyl chloride)
Jacket Color	Black
Jacket Material	PVC (polyvinyl chloride)
Maximum Amperage	20
Moisture Resistant	Yes
Series Name	N/A
Shielded	No
UNSPSC	60104900
Wire Gauge	12
Wire Type	Stranded
